Double Side Treated Copper Foil For HDI Thickness 12um 18um 35um 70um

Name: Double Side Treated Copper Foil For HDI Thickness 12um 18um 35um 70um
Brand: JIMA
Price: 1 USD

Brand Name : JIMA

Model Number : RAPCB09

Certification : SGS, ISO,Reach, RoHS

Place of Origin : China

MOQ : 50kg

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 1000 Ton per month

Delivery Time : 5-15 days

Packaging Details : Wooden box package

Application : Multilayer Printed Circuit Board，HDI (High Density Interconnector) for PCB

Thickness : 12um 18um 35um 70um

Standard Width : 1290mm, we can cut as size requirement

ID : 76mm，152mm

Lead time : 7-10days

Sample : Can be supply

Contact Now

Double Side Treated Copper Foil For HDI

Detail:

Core Length: as request
Nominal Thickness:12um 18um 35um 70um
Length: Customized
Delivery Time: 15-20days
Packing Details: Export Wooden box
Term: FOB, CIF
Payment Item: 50%T/T deposit, balance pay before shipping.
High performance processing disposal equipment perform fabrication processing of copper foil.

Features:

Double-side treated Copper foil
With high binding force to laminate
Direct multi-layer lamination
Good etchability
The treated foil is pink

Typical Application

Multilayer Printed Circuit Board
HDI (High Density Interconnector) for PCB

Typical Properties of Double Side Treated Copper Foil for HDI

Classification		Unit	Requirement				Test Method
Foil Designation			T	H	1	2	IPC-4562A
Nominal thickness		um	12	18	35	70	IPC-4562A
Area Weight		g/m²	107±5	153± 7	285±10	585±20	IPC-TM-650 2.2.12
Purity		%	≥99.8				IPC-TM-650 2.3.15
Roughness	Shiny Side(Ra)		≤3.0				IPC-TM-650 2.2.17
Roughness	Matte side(Rz)	um	≤6	≤8	≤10	≤15	IPC-TM-650 2.2.17
Tensile Strength	R.T.(23°C)	Mpa	≥207	≥207	≥276	≥276	IPC-TM-650 2.4.18
Tensile Strength	H.T.(180°C)	Mpa	≥103	≥103	≥138	≥138	IPC-TM-650 2.4.18
Elongation	R.T.(23°C)	%	≥2	≥2	≥3	≥3	IPC-TM-650 2.4.18
Elongation	H.T.(180°C)	%	≥2	≥2	≥2	≥3	IPC-TM-650 2.4.18
Resistivity		Ωg/m²	≤0.170	≤0.166	≤0.162	≤0.162	IPC-TM-650 2.5.14
Peel Strength(FR-4)	S side	N/mm	≥0.9	≥0.9	≥1.4	≥1.4	IPC-TM-650 2.4.8
	S side	Lbs/in	≥5.1	≥6.3	≥8.0	≥8.0
	M side	N/mm	≥0.9	≥1.1	≥1.4	≥2.0
	M side	Lbs/in	≥5.1	≥6.3	≥8.0	≥11.4
Pinholes & Porosity		Number	No				IPC-TM-650 2.1.2
Anti-oxidization	R.T.(23°C)	Days	180				/
Anti-oxidization	R.T.(200°C)	Minutes	40				/

Standard Width,1295(±1)mm, Width range:200-1340mm. May according to the customer request tailor.

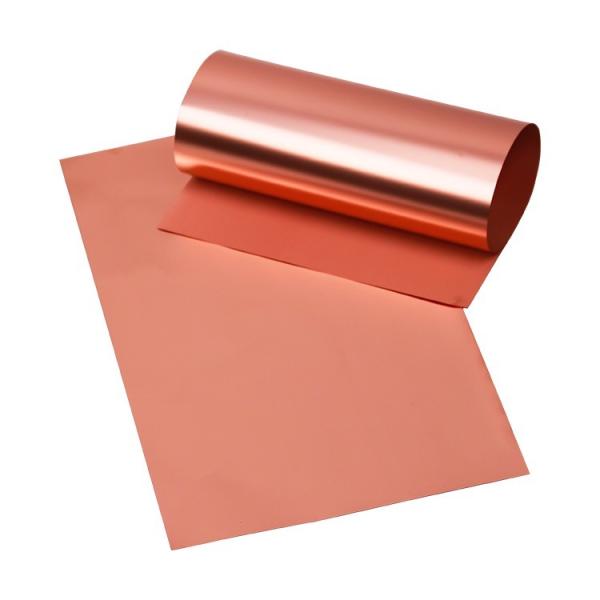

PCB Copper Foil Image
