Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um

Name: Low Profile Reverse Treated Copper Foil For 2LFCCL Wareless Charging 12um 18um 35um 50um 70um
Brand: JIMA
Price: 1 USD

Brand Name : JIMA

Model Number : EDCULP

Certification : SGS, ISO,Reach, RoHS

Place of Origin : china

MOQ : 50kg

Price : Negotiation

Supply Ability : 1000 Ton per month

Delivery Time : 7-20days

Packaging Details : Wooden carton

Name : Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging

Color : Red or Black

Thickness : 12um,18um,35um,50um,70um

Feature : Reverse Treated Copper Foil

Application : 2L-FCCL , Wareless Charging , EMI

Lead Time : 7-10 days

Sample : Can be supply

Contact Now

Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging 12um 18um 35um 50um 70um

Detail

Thickness: 12um 18um 35um 50um 70um
Standard Width: 1290mm, can be cutting as per size request
Wooden box package
ID: 76 mm, 152 mm
Length: Customized

Feature

Low profile for FCCL
High MIT
Excellent etchability
The treated foil is pink or black
Reverse treated copper foil
Reverse treated copper foil

Typical Application

Wareless Charging
2L-FCCL
EMI
2layer FPC
Mobile phone Wireless charging

Typical properties of Reverse Treated Copper Foil (LP-D-P/B Cu)

Classification		Unit	Requirement					Test Method
Nominal thickness		um	12	18	35	50	70	IPC-4562A
Area Weight		g/m²	107±5	153±7	285± 10	435±15	585± 20	IPC-TM-650 2.2.12.2
Purity		%	≥99.8					IPC-TM-650 2.3.15
Roughness	Shiny side (Ra)	սm	≤3.0					IPC-TM-650 2.3.17
Roughness	Matte side(Rz)	um	≤3.0	≤4.0	≤6.0	≤8.0	≤10	IPC-TM-650 2.3.17
Tensile Strength	R.T.(23°C)	Mpa	≥207		≥276			IPC-TM-650 2.4.18
Tensile Strength	H.T.(180°C)	Mpa	≥103		≥138			IPC-TM-650 2.4.18
Elongation	R.T.(23°C)	%	≥4	≥4	≥8	≥10	≥12	IPC-TM-650 2.4.18
Elongation	H.T.(180°C	%	≥4	≥4	≥6	≥8	≥8	IPC-TM-650 2.4.18
Peel Strength(FR-4)		N/mm	≥0.7	≥0.8	≥1.0	≥1.2	≥1.3	IPC-TM-650 2.4.8
Peel Strength(FR-4)		Lbs/in	≥4.0	≥4.6	≥5.7	≥6.9	≥7.4	/
Pinholes & Porosity		Numbers	No					IPC-TM-650 2.1.2
Anti-oxidization	R.T.(23°C)	Days	180					/
Anti-oxidization	H.T.(200°C)	Minutes	60					/

Product Display

Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um

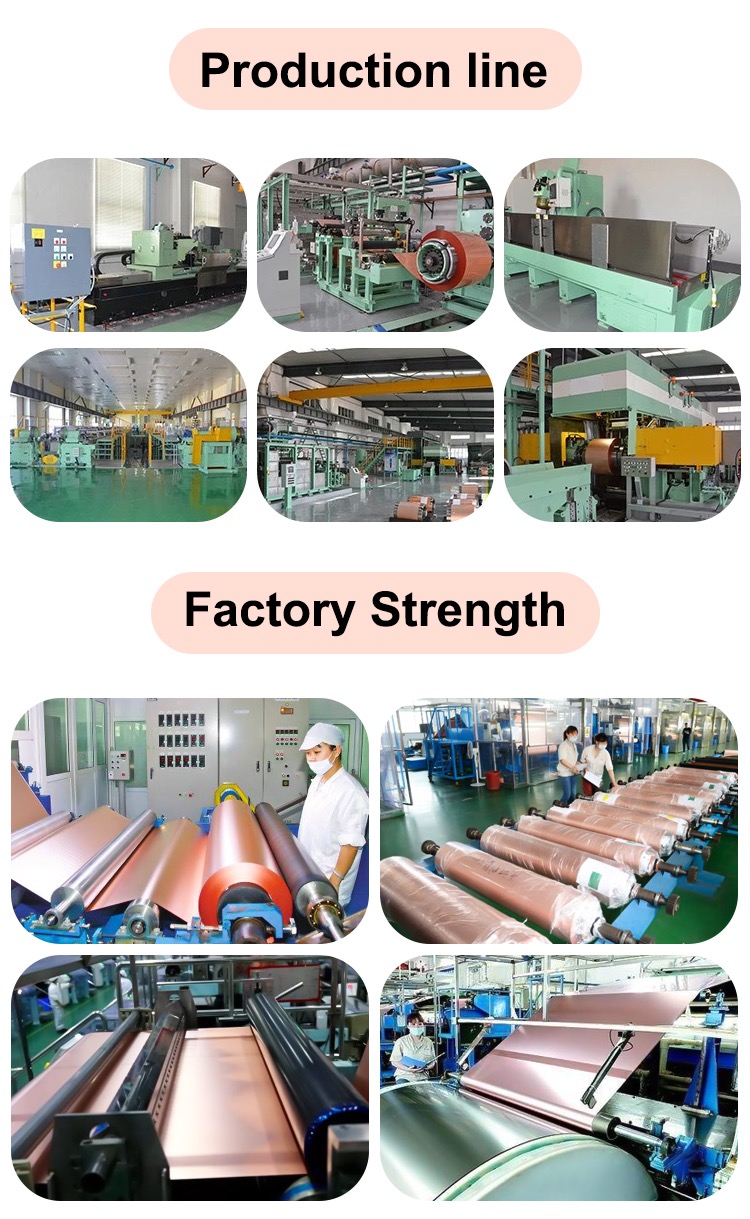

Production Line & Factory

Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um
